What Is Prefabricated Compact Substation & Its Benefits For Construction Projects

Traditional power substation construction mode requires complicated on‑site civil engineering work, separate delivery of transformers, high‑voltage cabinets and low‑voltage cabinets, plus field assembly, wiring, equipment connection and repeated debugging. The whole process occupies long construction periods, demands abundant site labor resources, and is easily affected by bad weather, on‑site management risks and human operation errors. For time‑sensitive projects such as new energy power stations, industrial park development, highway supporting facilities and temporary construction power supply, the conventional building‑on‑site solution often becomes a bottleneck restricting overall project progress. Against this background, prefabricated compact substation, also widely known as box‑type substation, has become a popular alternative choice for EPC contractors and project owners globally.

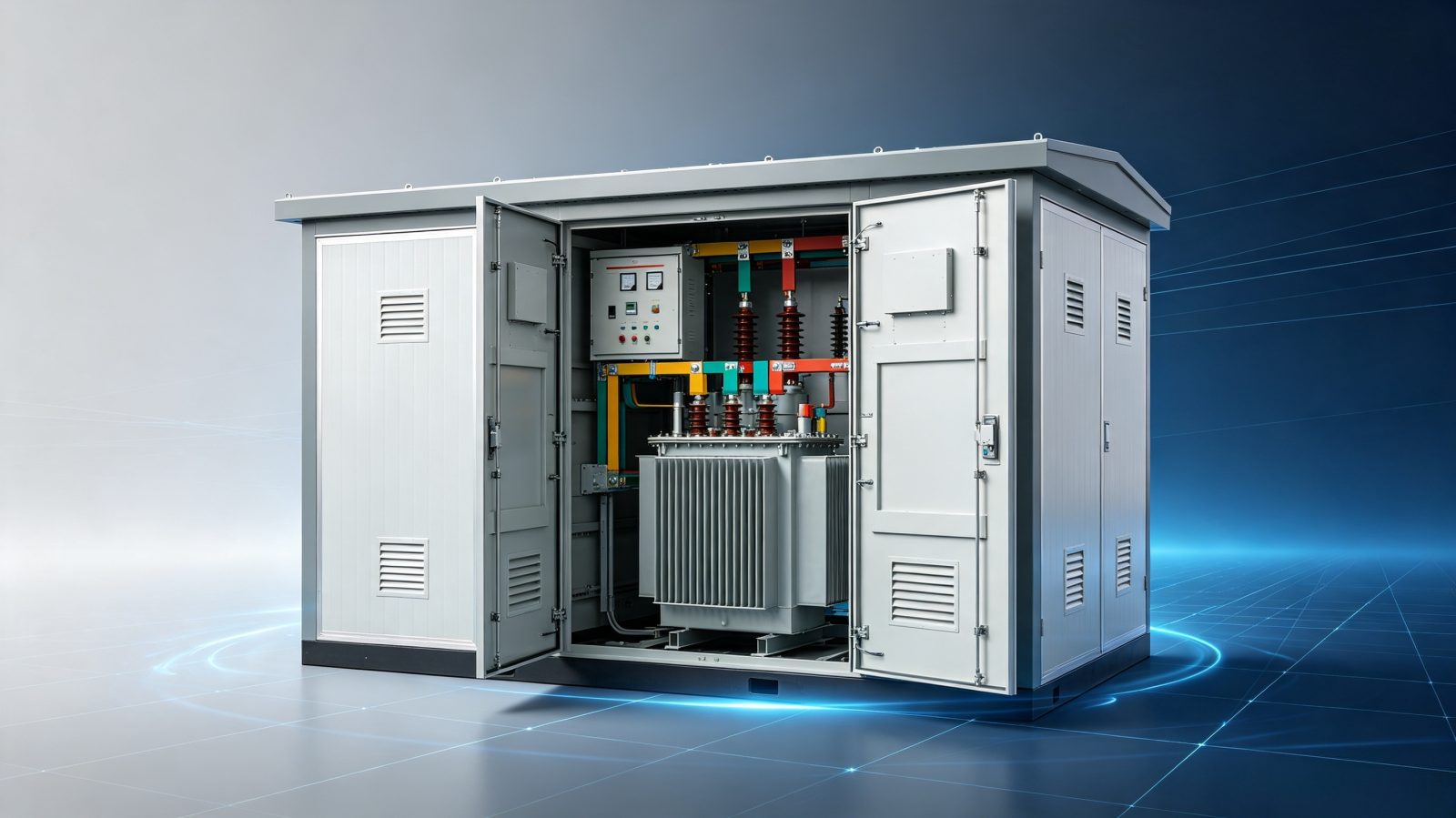

The compact prefabricated substation integrates high‑voltage incoming unit, transformer unit, low‑voltage outgoing distribution unit, auxiliary control and protection components inside one complete metal‑enclosed box body. Almost all assembly work, internal wiring and comprehensive performance debugging are completed inside the manufacturer’s factory. After finished products are transported to the project location, customers only need to finish foundation construction, place the box‑type substation in position, and complete simple external cable connection. A large amount of complicated work shifts from outdoor construction site to standardized indoor production workshop.

Box‑type prefabricated substations bring multiple practical advantages for modern engineering projects:

1. Dramatically shorten on‑site construction cycle: Most assembly and testing work is completed in factory, greatly reducing site work volume and accelerating the whole project schedule.
2. Space‑saving layout: The integrated design occupies much smaller land area compared with traditional brick‑built substations, which is valuable for land‑tight industrial parks and urban projects.
3. Stable & reliable quality: Factory‑based standardized assembly and full pre‑delivery testing effectively lower risks caused by irregular field installation.
4. Outstanding environmental adaptability: The sealed box shell provides good protection against rain, dust, moisture and temperature variation, adapting to outdoor complex climate conditions.
5. Convenient operation & maintenance: Modular internal layout facilitates routine inspection, component replacement and later‑period equipment upgrade.

This type of equipment is extensively applied in numerous scenarios: photovoltaic and wind power generation stations, industrial parks, highway service zones, urban residential communities, mining area temporary power supply, large‑scale event temporary power distribution and municipal reconstruction projects. Nevertheless, box‑type substations are not universal for every situation. Project designers still need to evaluate actual load scale, surrounding environment and local power‑grid access requirements before adoption.

Shandong Chengyang Electric Technology Co., Ltd. provides fully customized compact prefabricated box‑type substations. According to customers’ total load capacity, input‑output voltage parameters, local meteorological conditions and site layout restrictions, our technical team will configure internal high‑voltage cabinets, transformers and low‑voltage distribution units reasonably. We will prevent over‑specification which causes unnecessary cost waste, as well as avoid insufficient capacity that brings operation risks. Our factory in Jinan completes sheet‑metal processing, internal equipment matching, wiring and full‑function testing. Products can adapt to diverse working conditions including coastal salt‑fog environment, high‑altitude regions and cold‑climate zones.

Before placing orders for compact prefabricated substations, you’d better sort out the following key project information for suppliers:

1. Total calculated load capacity and required transformer rated capacity
2. High‑voltage incoming voltage level and low‑voltage outgoing voltage requirements
3. Local climate factors: temperature range, rainfall, salt‑fog or dust pollution level
4. Site space limitation, foundation condition and installation location (outdoor / semi‑outdoor)
5. Functional requirements: protection configuration, metering module, remote monitoring function etc.
6. Project schedule: expected production lead‑time and delivery deadline

Sourcing qualified box‑type substations from a responsible Chinese manufacturer helps your project balance quality, cost and construction efficiency. If you are seeking reliable prefabricated substation solutions, Chengyang Electric is ready to support you. Send us your project documents and parameter lists, our engineers will give you targeted technical proposal and quotation. You can choose remote video factory audit, or come to visit our Jinan production base in person to check our manufacturing capability.
